The Exos from Abiss is a system for measuring micro-leaks and improving food package seal integrity.

BENEFITS – ALL MODELS

  • Meets standards:
    DIN 55508-1: measures flow rate at constant pressure
    ASTM F1140: seal strength
    ASTM F2054: burst test
  • Measures with low pressure
  • Breathability measurement (micro-perforated films)
  • Tested on vacuum packaging
  • Fully traceable via an internal spreadsheet
  • Excessive pressure can be fitted manually or automatically
  • Remote maintenance 7 days a week, with remote connection available

Download Product Data Sheet

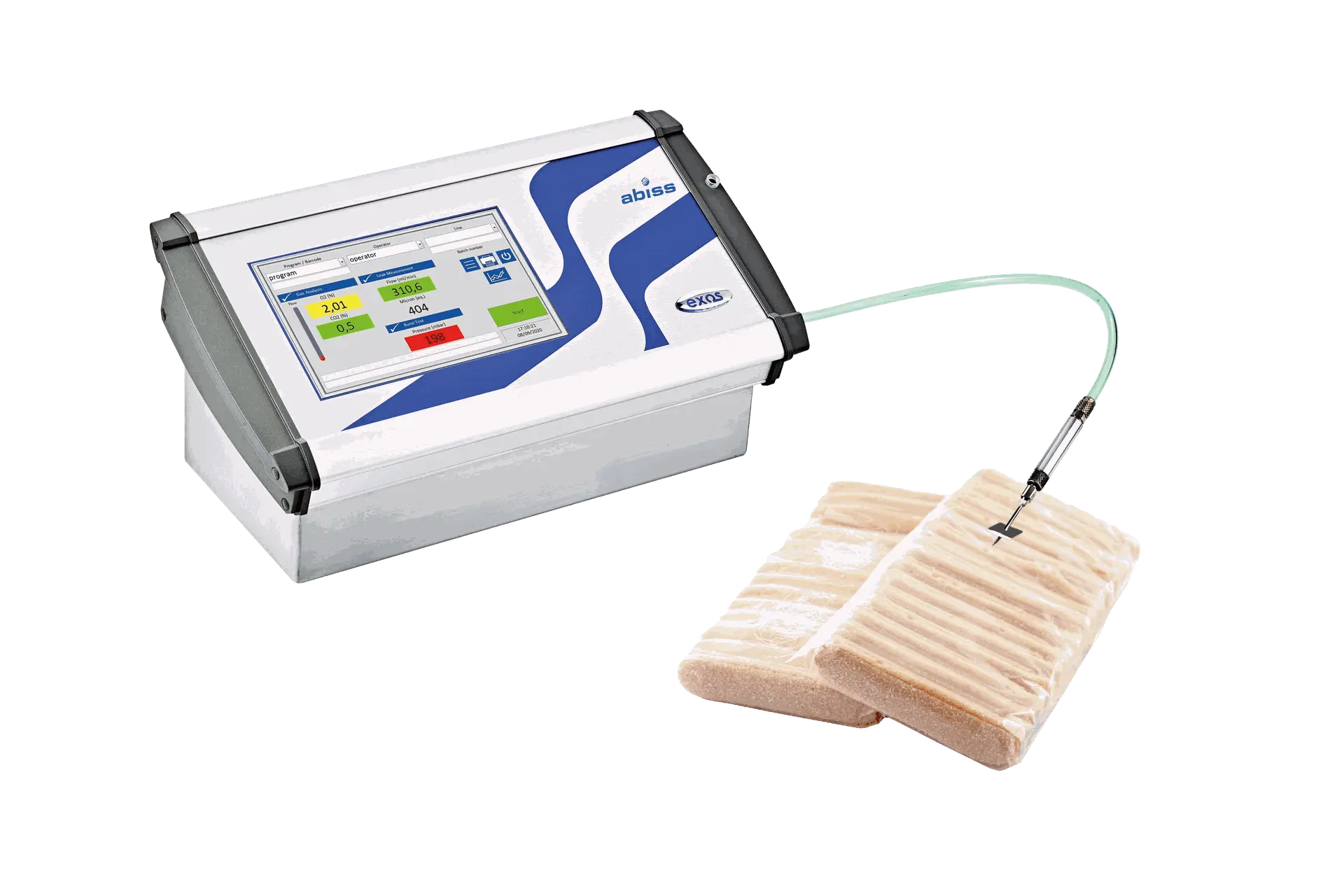

<img src="exos.png" alt="instrument for leak measurement, sealing strength and integrity"> ​​

Exos® – Leak only

The Exos Leak allows you to measure airtightness for vacuum packaging and pneumatic circuits.

This measurement device also checks the seal resistance with a burst test function.

These two tests can be carried out in quick succession on the same package.

The sensitivity threshold is 5 microns in terms of perforation size (Equivalent size of a bacterium is between 1 and 10 microns)




Exos®Leak / O2 or O2 and CO2

The Exos Leak/O2 allows you to measure the percent of O2 and the airtightness for all types of packaging, containers and pneumatic circuits. This measurement device also checks the resistance of the seal by performing a  burst test. These three tests can be carried out in quick succession on the same packaging. The Exos lets you inspect the integrity of your packaging, and can be used in the laboratory as well as during the manufacturing process.

Combines 5 measurements in 1 single test:

  • O2 gas analysis
  • Micro-leaks down to 5 μm
  • Creep test (A&B)
  • Burst Test

How do you get the most of EXOS
